Product Feature

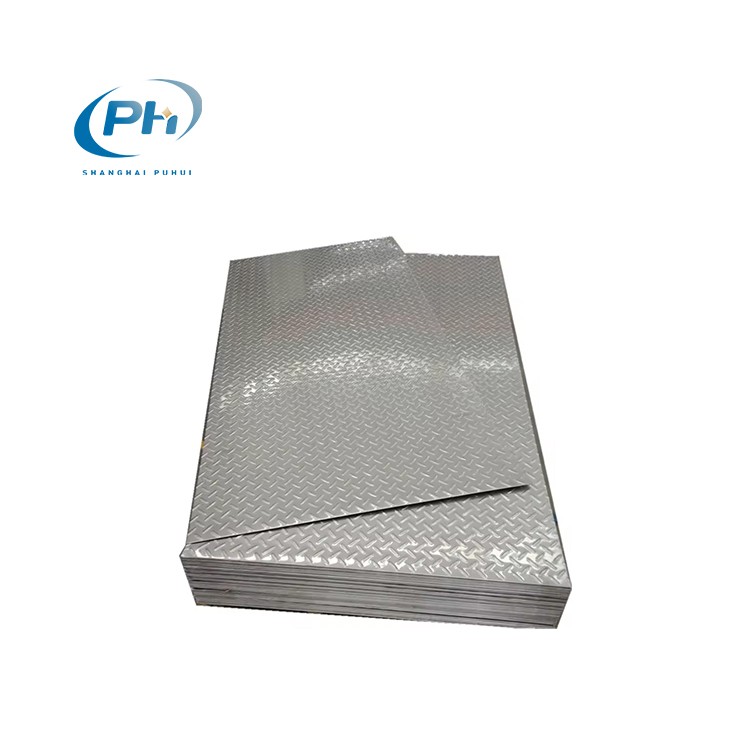

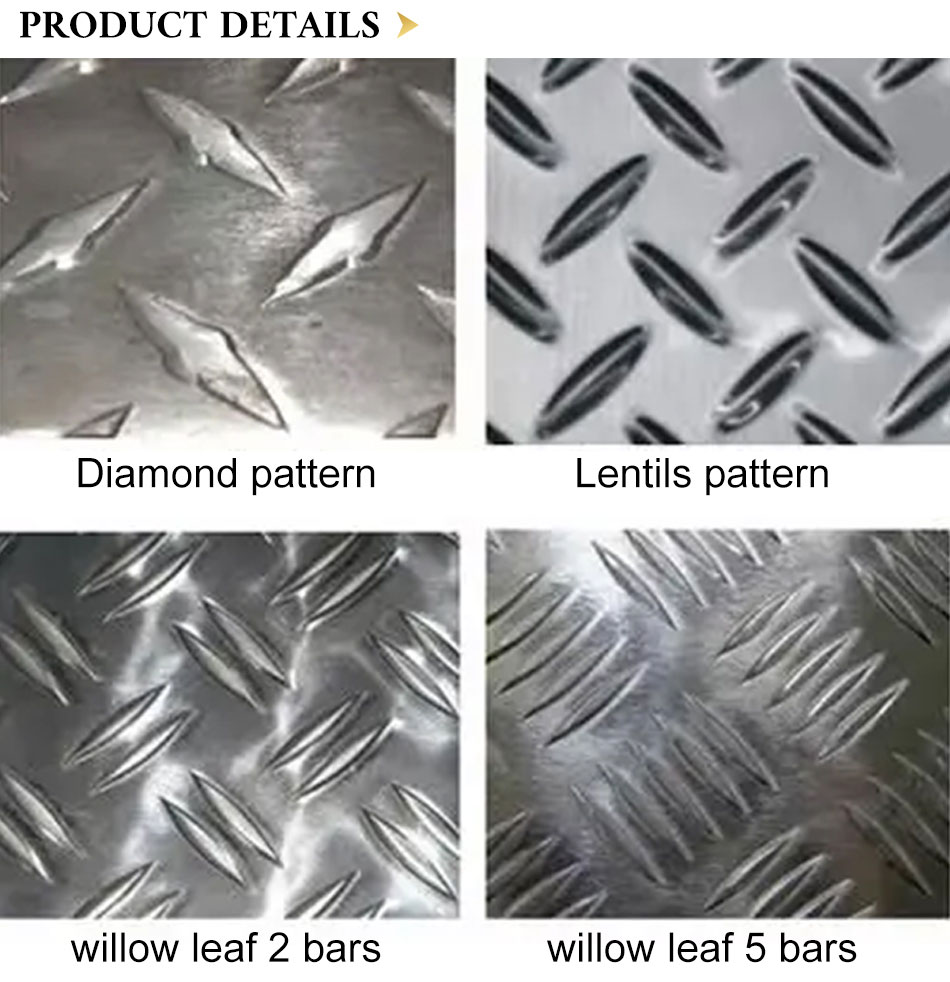

Checkered steel plates are steel plates with rhombic shapes on the surface Because of the rhombic shapes, the surface of the plates are rough, which can be used as floor board, factory stair boards, deck board and car boards.
Checkered steel plates are measured and represented by plate thickness, and thickness varies from 2.5 mm to 8 mm. Checkered steel plates are made of #1 - #3 common carbon steels, the chemical composition applies to GB700 carbon construction steel certificate.
We can cut the galvanized steel plate sheet into your required size, and the cut edges are also galvanized.
Parameter
Size plate thickness
kg/m2
914 × 1,829
(three × six)
1,219 × 2,438
(4 × 8)
1,524 × 3,048
(5 × 10)
2.3
19.73
33.0
58.6
-
3.2
26.79
44.8
79.6
125
4.5
36.99
61.8
110
172
6.0
48.77
81.5
145
227
9.0
72.32
121
215
336
12.0
95.87
160
285
445
16.0
127.3
213
378
591
19.0
150.9
252
448
701
22.0
174.4
292
518
810
Thickness (mm)
2.3
3.2
4.5
6.0
9.0
12.0
Max width (mm)
1219
1524
1524
1524
1524
1524
Maximum length (mm)
6096
6096
6096
6096
6096
6096
